Ae86 wiring harness.

 Looked for the whole set of body wiring harness with dash wiring to complete with no mix n match wiring.

From engine bay to interior dash to the rear lights.

Complete ae86 corolla wiring.

Dashboard and steering column fitting

 Seems like the installation of the ae86 dash is not done properly.

Need to reposition the dash higher for the steering column to sit higher.

Change the steering column shaft as well.

Distributor relocate kit from sq engineering

 Bought this to eliminate from knocking the firewall.

Nice quality fit. Next to test on the functionality.

Transparent cover to look inside.

20v engine rebuild to new specs.



Fresh coat of paint to freshen up the block and head

Cusco blue for the cam cover.

Test fitted the cam cover.

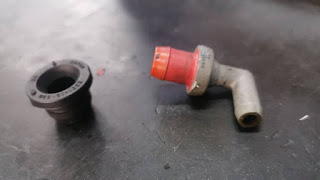

Change the blowby valve and rubber bush to new.

Engine assemble.

20v black top full engine overhaulin

 Since the engine was taken out and in rather sorry condition decided to overhaul the whole engine from top to bottom.

Change another set of:

1) crank shaft

2) Taho big end bearings

3) Toto 82mm piston with npr piston rings.

4) 0.8mm trd metal gasket

5) head skim

6) block rebore and pressure test

7) valve and head change

20v engine disaster

 Bought a donor engine blacktop 20v engine to be install to this ke70.

20v engine with all the necessary parts to be install rwd.

Engine wiring, ecu, alternator, starter and other miscellaneous items.

Opened up the engine n found many hidden secrets or should I said hidden damages and money sucking.

Discovered that the whole engine need to be overhaul. #$*##$.
